Products | Tower UPS - HE700U-B 3:3 50kVA – 80kVA

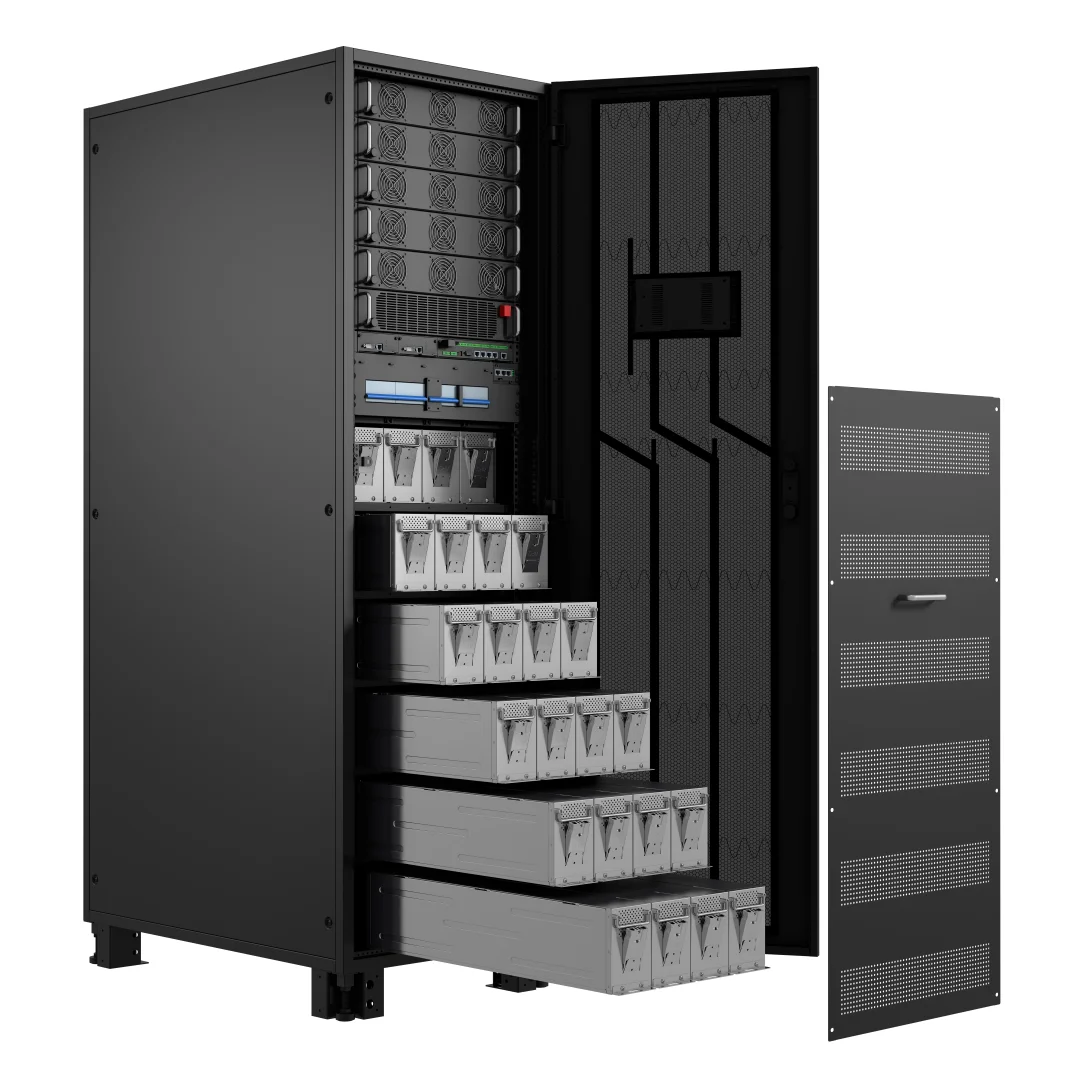

Tower UPS - HE700U-B 3:3 50kVA – 80kVA

The HE700S-B Range can house up to 6 strings of 7 or 9Ah batteries enabling backup times of up to 20 minutes without the need for external batteries and is available in 50-60-80 kVA models with three-phase input and output and on-line double conversion technology in accordance with VFI-SS-111 classification (as set out in standard IEC EN 62040-3).

  • Tower UPS
  • Up to 95.5% system efficiency
  • Up to >=99% efficiency in Eco-mode
  • Rated Output Power Factor 1.0
  • Near-unity Power factor at partial and full loads
  • Wide Input Voltage/Frequency Range
  • Superior Overload Capability
  • Back feed Protection
  • LBS function can connect 2 independent groups of UPS systems to work in synchronisation, enhances the reliability of the system.
  • Up to 6 units can operate in parallel with support for common battery arrangement.
