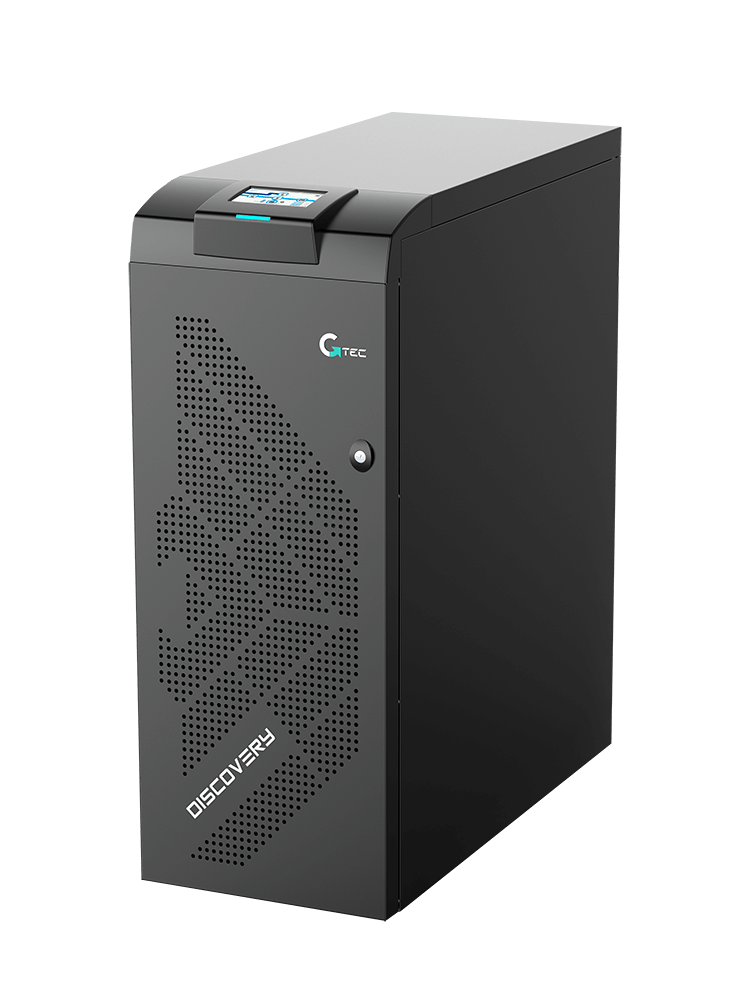

Discovery Extra 3:1 / 1:1 10kVA - 20kVA

The Discovery series is a transformer-free UPS available in 10/15/20 kVA/kW models with three-phase/single-phase input and single-phase output and 10/15/20/30/40/60/80/100/120 kVA/kW models with three-phase input and output.

Discovery has been designed to optimise the specific requirements by enhancing the installation flexibility. it is available in four different frame solutions to satisfy any critical power demand and application.

Available in 10-15-20 kVA versions
Available as three-phase/single phase input, single-phase output
Up to 96.2% Overall Efficiency
High frequency, double conversion online technology
Available in different chassis sizes for ease of installation
Discovery Extra - Footprint less than 0.4 m2 and volume of 0.5 m3; 440 mm x 840 mm x 1320 mm (W x D x H); Up to 3 internal battery strings in a single cabinet; Option to add isolation transformer; Can upgrade enclosure protection from IP20 or IP21 to IP31. Can be equipped with Seismic kit.
The UPS has a unique control system that reduces harmonic voltage distortion (< 1% at resistive linear load and < 1.5% at non-linear load)
5-inch colour touchscreen display panel clearly highlights crucial UPS measurements and operating statuses. While an innovative new LED status indicator automatically changes its colour (light blue, dark blue, orange, red) depending on the operating mode and condition of the UPS.
In addition, the Discovery has high overload (125% for 10 minutes, 150% for 1 minute) and inverter short circuit (270% for 200ms and 150% for 300ms) capacity, which enables it to handle sudden peak loads without needing to transfer to bypass.
Install up to 4 Discovery together in parallel to scale capacity or build in redundancy (i.e. N+1 configuration). Closed loop system ensures the UPS continue to function even if there’s a disruption to the connecting cables.
The Discovery range is suitable for use with sealed lead-acid (VRLA), AGM, GEL, open vented or nickel cadmium batteries, as well as alternative backup sources such as lithium-ion batteries.
It incorporates sophisticated battery management systems, such as deep discharge protection and recharge voltage compensation, to ensure the best performance and operating life. Higher-powered (up to 30 A) battery chargers are available for longer runtime applications.
Integrated dry contact board with 5 programmable inputs and 4 programmable outputs
Smart RS232 and USB communications with monitoring software
Optional SNMP communications card
Emergency Power Off (EPO) facility
